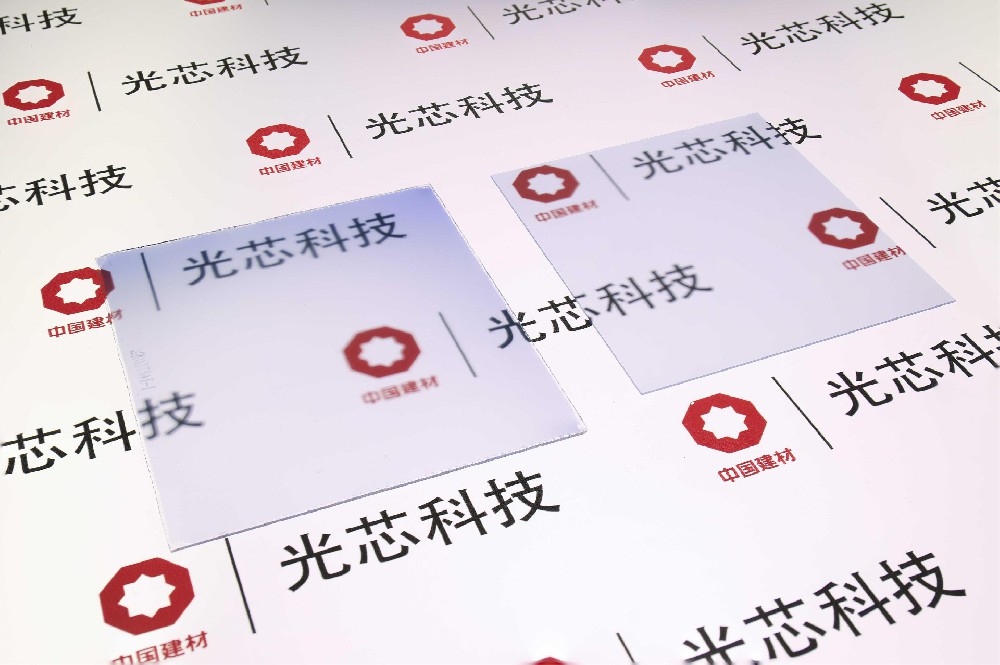

Fiber optic imaging materials for intelligent security identity recognition

Fiber optic imaging materials for intelligent security identity recognition

  • Classification： Image optical recognition materials
  • Number of views： 1089
  • QR code：
  • Release time： 2022-02-21
Inquiry
  • Product Overview

The optical fiber image transmission material for intelligent security identification developed by our company addresses the urgent need in law enforcement, financial, government enforcement, and immigration management for large-scale,high-resolution,clear, low-defect, cost-effective palmprint recognition systems, and provides key material support.

Technical data ：

Fiber diameter of a unit: 4μm- 10μm(Customized according to user needs)

Transmittance within the range of 400-900nm: ≥70%

Signal-to-noise ratio difference: ≥1800

Resolution: ≥100lp/mm

Defective pixels: no defective pixels within the effective area that exceed 100μm（closely related to the size)

Panel size: 220mm×146mm(Customized according to user needs)

Thickness: (Customized according to user needs)

Applications：

It can be applied in fields such as intelligent door locks and palm print recognition.
