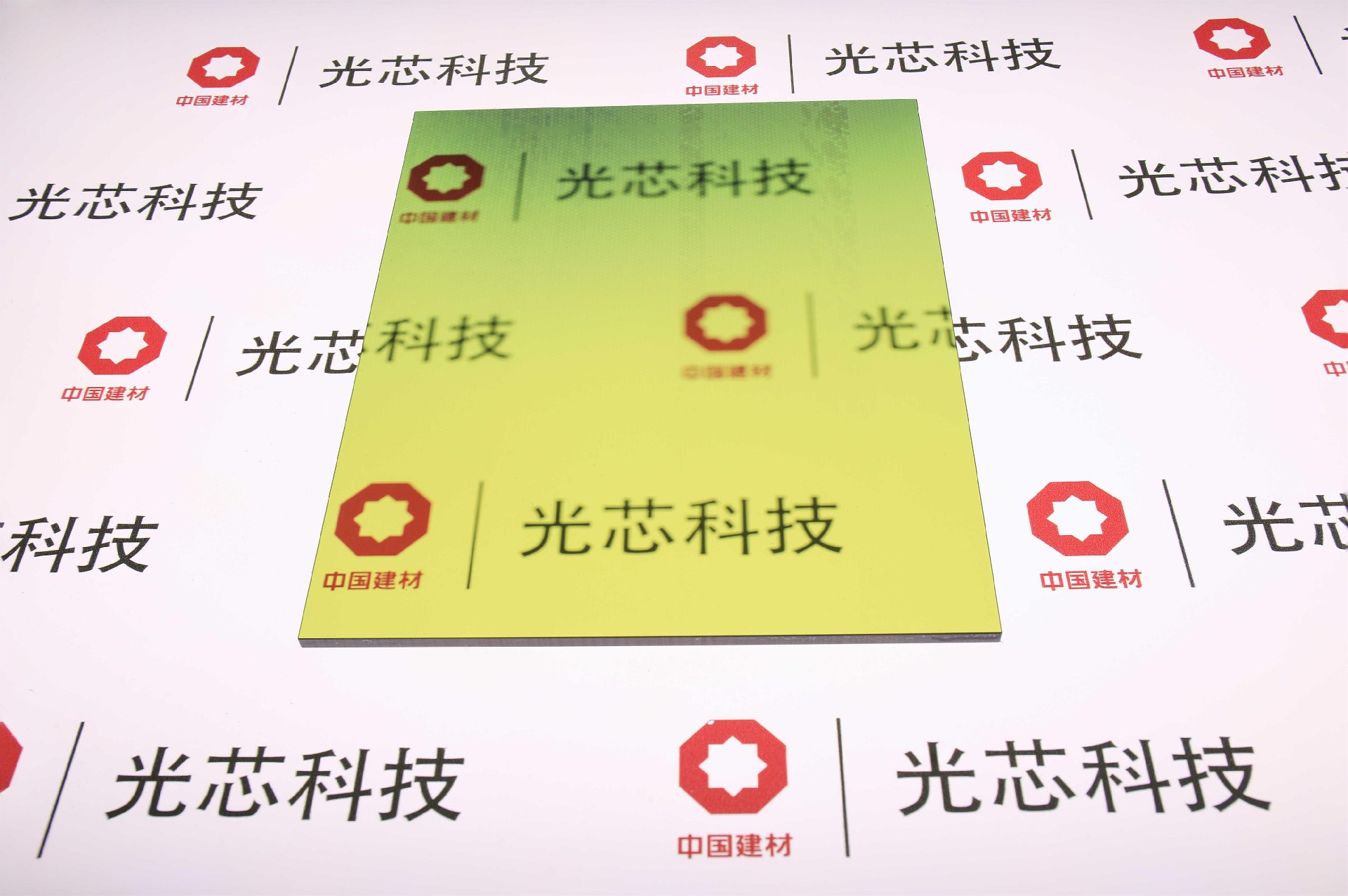

Large size radiation resistant fiber optic panel

  • Classification: Large size radiation resistant fiber optic panel
  • Number of views: 2097
  • QR code:
  • Release time: 2022-02-21
  • Product Overview

The large-size radiation-resistant fiber panel that our company is developing is mainly used in amorphous silicon flat panel detectors. The amorphous silicon flat panel detector is a conversion device that converts X-rays into digital signals.

The main function of the large-size radiation-resistant fiber panel:

It has photoconductive properties, which can couple the scintillation layer with photosensitive devices such as amorphous silicon optical thin film layer to generate high-resolution images with better contrast.

It can absorb X-ray and protect the photoelectric detector from damage,and prevent external noise from affecting image quality.

Technical data

Fiber Size( μm)/Resolution(lp/mm)6/83

NA: 1.0

Stray Light Control(EMA): Yes

Colli mated Transmission at 550mm:3 mm Thick(%): 72

Coefficient of Thermal Expansion( × 10 -7/k)88

Maximum Formats( mm)146 × 146

Core/Clad ratio70/ 30

Lead FreeYes

Phosphor CompatibleYes
