Optical fiber panel

  • Classification: Fiber optic image transmission component series
  • Number of views: 2955
  • QR code:
  • Release time: 2019-03-26
  • Product Overview

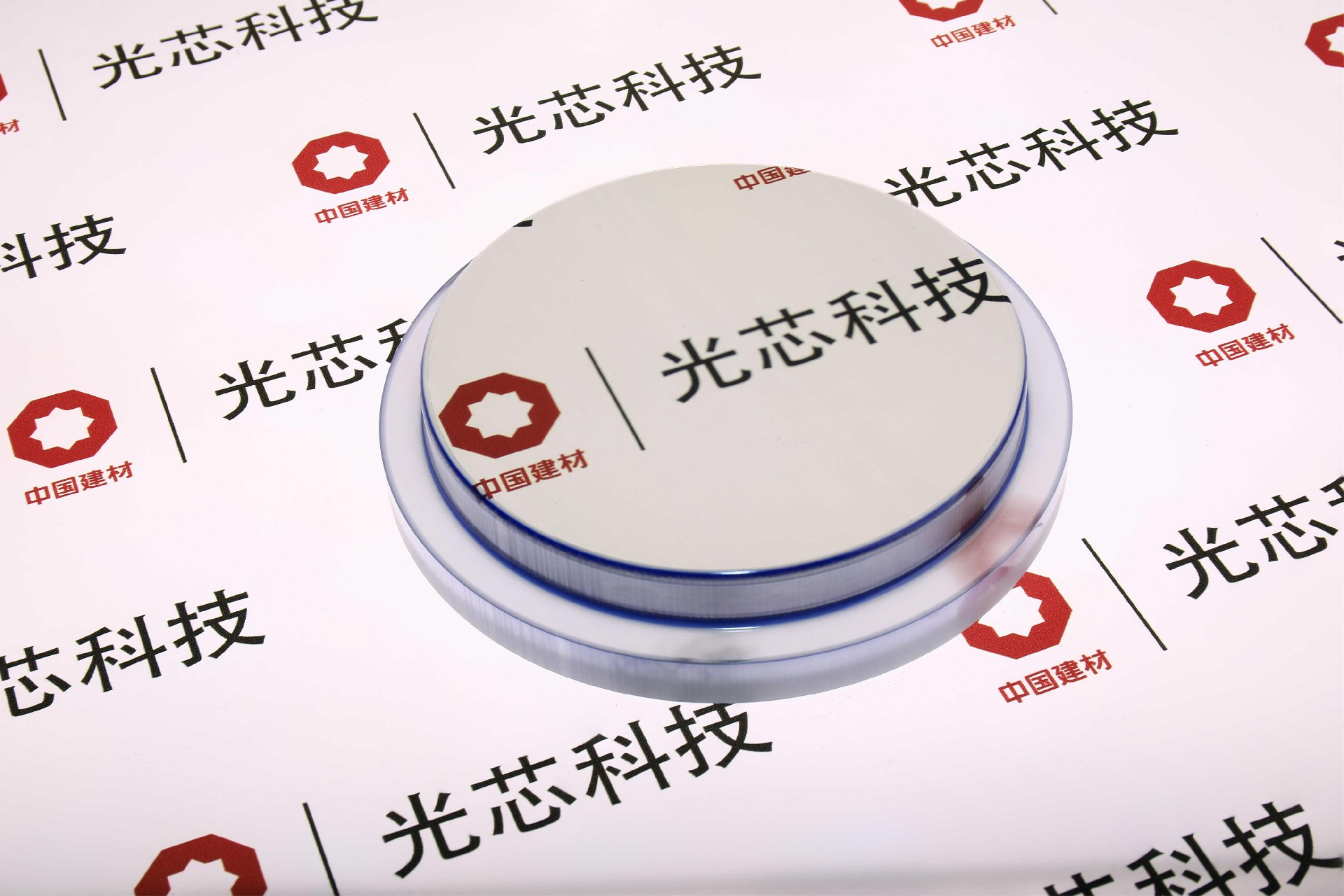

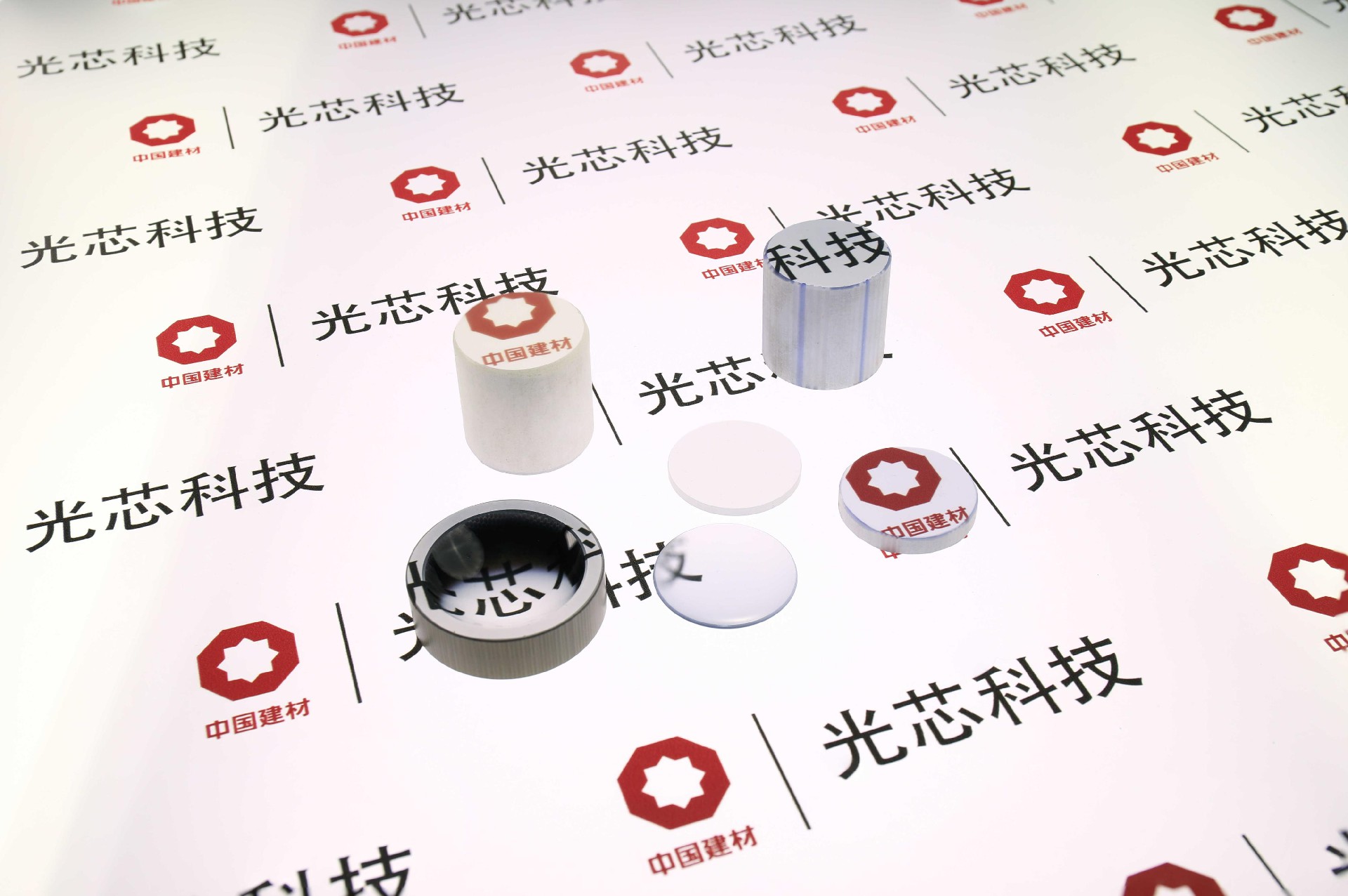

The optical fiber panel is composed of millions of optical fibers with a diameter of 4-6μm arranged in a regular array and fused together. The optical fiber serves as the basic imaging unit of the fiber optic panel, and it is made by high-temperature drawing of low-refractive-index cladding glass and high-refractive-index core glass.

Technical data

Fiber diameter of a unit: Φ4 ~80μm

Effective aperture: Φ5 ~ 150mm

Vacuum tightness: 10 - 12Pa  m3/s

NA: 0.3 ~ 1.0

Collimation transmission ratio: >70%

DTR: >65%

Infrared response: 2700nm

Ultraviolet response: 300nm

Shear distortion: <15μm

Total distortion: 15μm

Image shift: 50μm

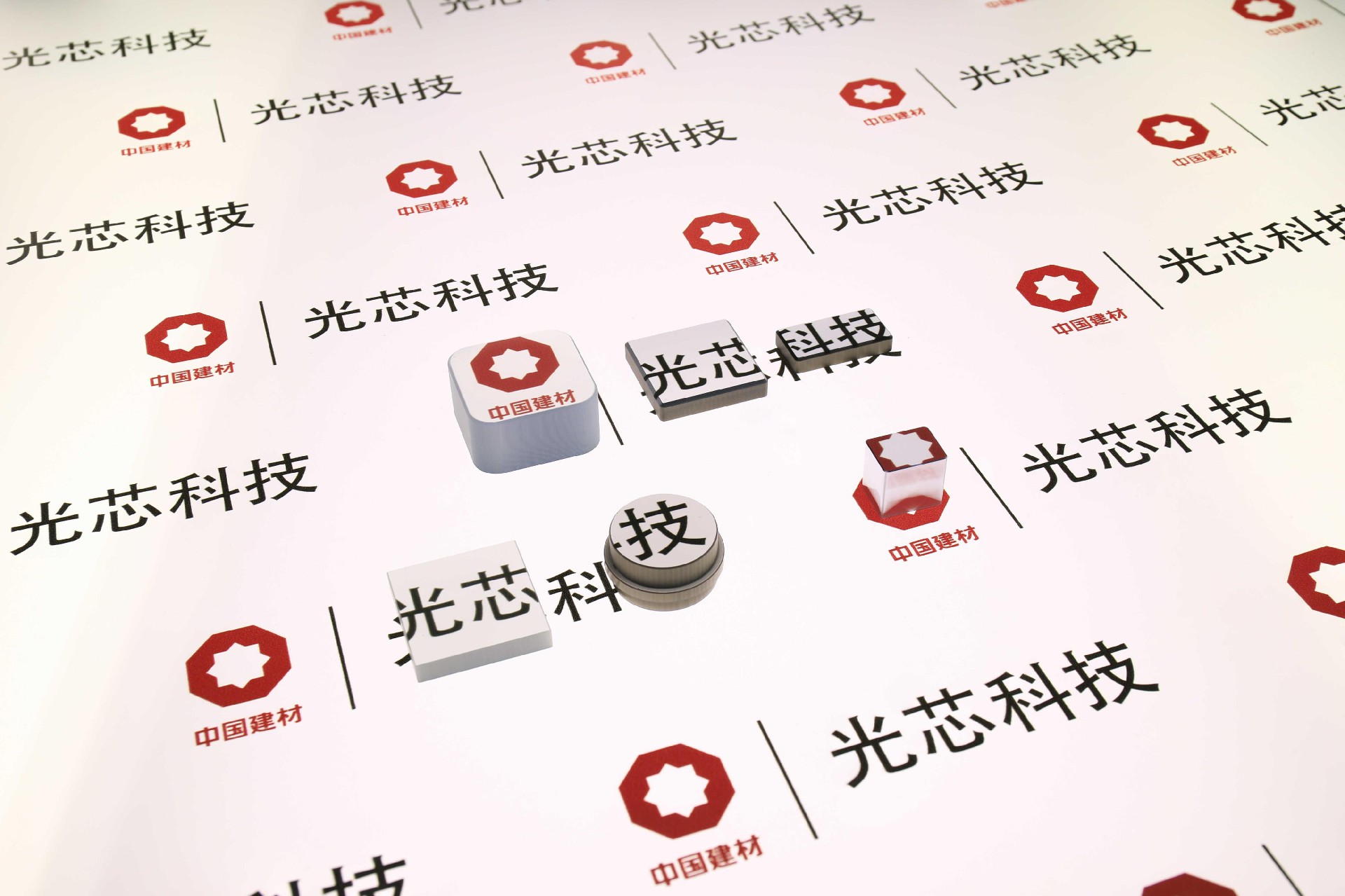

Shape: Concave, stepped, flat
