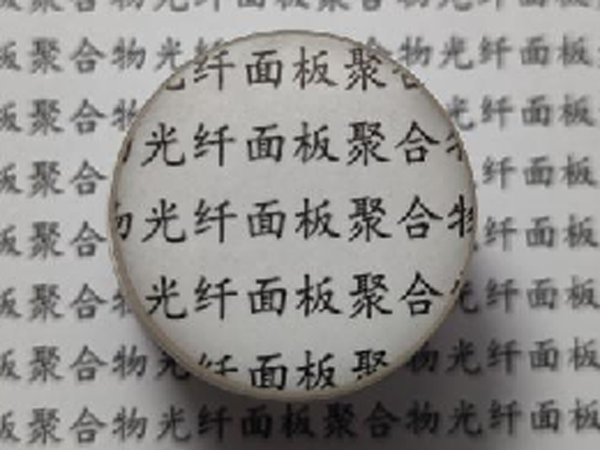

Polymer fiber optic panel

Polymer fiber optic panel

  • Classification： Polymer fiber optic panel
  • Number of views： 1613
  • QR code：
  • Release time： 2022-02-22
Inquiry
  • Product Overview

The company has initially developed polymer fiber optic panels with characteristics such as low cost, acid and alkali resistance, electromagnetic interference resistance, good toughness, radiation resistance, and good biocompatibility, starting from innovative materials, structures, and preparation processes.

Technical data ：

Fiber diameter of a unit：Φ20~200μm

Effective aperture：Φ20~200mm

NA：0.3~0.7

Collimation transmission ratio：＞75%

DTR：＞65%

Shear distortion：<100μm

Total distortion：<100μm

Image shift：<100μm

Shape：Concave, stepped,flat


label

This article's website： http://www.gxtechnology.com.cn/en/?jhwgx/102.html
Prev： 没有了！
Next： 没有了！

Hot Product

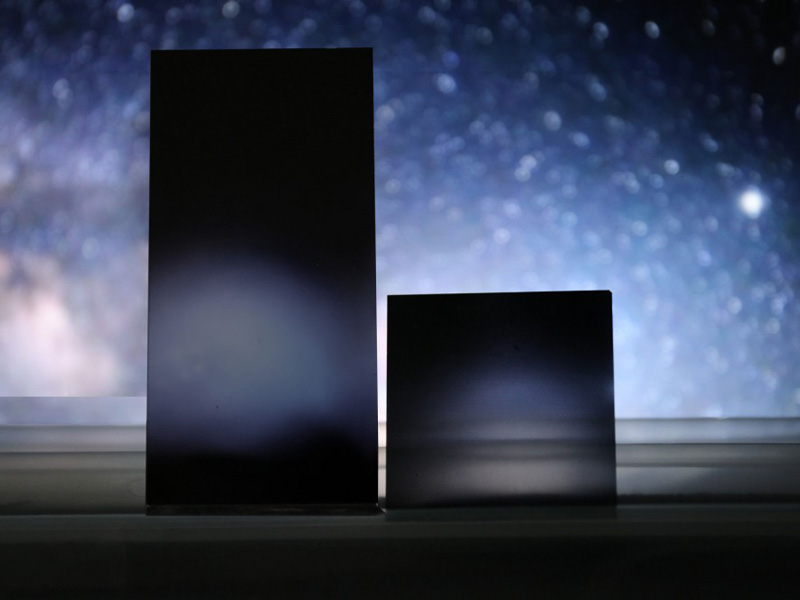

Large size radiation resistant fiber optic panel
