laser

laser

  • Classification： laser
  • Number of views： 783
  • QR code：
  • Release time： 2022-04-12
Inquiry
  • Product Overview

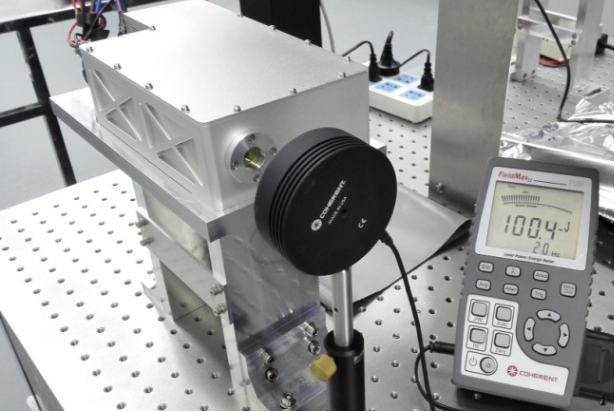

Compared with the lamp-pumped laser, the semiconductor laser-pumped solid-state laser ( all-solid-state laser ) we developed has high optical-to-optical conversion efficiency, low waste heat generation rate, and no water cooling, which greatly improves the reliability and environmental adaptability of the system. It has a wide range of applications in LIBS, lidar, laser ranging and laser indication.

Technical data ：

Output wavelength：1064nm （532 / 355 / 266nm wavelength optional）

Single pulse energy：100mJ

Energy stability：<0. 5%

Repeat frequency：1 -20Hz （PRF is adjustable）

Pulse width：8 - 10ns

Angle of divergence：3mrad

Spot size：~4mm

Polarization state：Linear polarization

Time jitter：<1ns

Cooling method：Air Cooling（Conductive cooling below 10Hz）

Power consumption：<150W

Operating temperature：10 - 30℃
